Raystack format¶

radrs.raystack opens a NEXRAD Level 2 volume as four flat, aligned tables instead of an xradar-style tree of per-sweep datasets. It targets workloads that want to operate on whole volumes — or many volumes at once — as fixed-shape tensors: ML training pipelines, batched feature extraction, vectorized analysis across moments.

The physical structure is preserved:

volume coverage pattern -> sweeps -> radials -> range gates

But each level lives in its own table, with a single row per VCP, sweep, or return. Moment data (DBZH, VRADH, RHOHV, …) lives in the returns table as 2-D arrays whose first axis matches the return-level metadata row-for-row.

Returns and folding¶

A return is a fixed-width chunk of range gates from a single radial. The width is set by fold_size. If a radial has more gates than fold_size, raystack splits it into multiple return rows; the final row is padded where the radial runs out of gates.

With fold_size=128, a radial with 1,832 gates becomes 15 returns: gates 0–127, 128–255, and so on. This is why the number of returns in a volume is typically several times the number of physical radials.

Each return row carries the metadata needed to place it back in radar space: azimuth, elevation, time, base range, and range step.

range is a gate index, not a distance

The range coordinate runs 0 … fold_size - 1: it is the gate's offset within its fold. Two returns at the same range index sit at completely different distances if they came from different folds or different sweeps.

Physical range lives on the per-return base_range and range_step variables (both metres), so reconstruct it explicitly:

gate_index = returns["range"].values                       # (fold_size,)
range_m = (
    returns["base_range"].values[:, None]
    + gate_index[None, :] * returns["range_step"].values[:, None]
)                                                          # (n_returns, fold_size)

base_range already accounts for the fold offset, so this is correct for trailing folds too.

Folding also sets how much memory a volume costs, which matters most when accumulating many volumes at once. See Batch iteration and folding for the returns-per-volume arithmetic.

The four datasets¶

Dataset	Main dimension	Contents
`vcps`	`vcp_time`	One row per volume coverage pattern: VCP number, site location, volume timing.
`sweeps`	`sweep_time`	One row per sweep: elevation angle, range geometry, return count.
`returns`	`return_time`, `range`	One row per return: azimuth, elevation, time, range metadata, plus moment arrays (`DBZH`, `VRADH`, `RHOHV`, …).
`activity`	`moment` × ray/sweep/volume	Valid-count and valid-fraction summaries per moment.

Sweep boundaries are recorded in sweeps["num_returns"]: each entry says how many rows of returns belong to that sweep. That single column is what keeps the flat layout aligned with the original sweep structure.

Opening a volume¶

import radrs.raystack as rrs

src = "s3://unidata-nexrad-level2/2024/07/02/KABR/KABR20240702_000016_V06"
rdt = rrs.open_datatree(src, fold_size=128)

vcps     = rdt["vcps"].dataset
sweeps   = rdt["sweeps"].dataset
returns  = rdt["returns"].dataset
activity = rdt["activity"].dataset

Moment variables come back as (n_returns, fold_size) matrices; the return-level metadata arrays are 1-D and align with the first axis:

>>> returns["DBZH"].shape
(114840, 128)
>>> returns["azimuth"].shape, returns["return_time"].shape
((114840,), (114840,))

That alignment is the contract the format is built around. A model can consume DBZH as a dense tensor; analysis code can map any row back to radar geometry by indexing the metadata arrays the same way.

Slicing by sweep¶

sweeps["num_returns"] is a count per sweep; the cumulative sum gives slice offsets into every return-level array.

import numpy as np

offsets = np.r_[0, np.cumsum(sweeps["num_returns"].values)]
start, stop = offsets[sweep_index], offsets[sweep_index + 1]

dbzh    = returns["DBZH"].values[start:stop]
azimuth = returns["azimuth"].values[start:stop]

The same start:stop slice applies to every column in returns.

Checking data availability¶

The activity dataset summarizes how much valid data each moment has, already computed over the folded representation. It is the cheap way to filter or weight volumes before sampling training batches.

activity["ray_valid_fraction"]      # per (moment, return)
activity["sweep_valid_fraction"]    # per (moment, sweep)
activity["volume_valid_fraction"]   # per (moment, vcp)

*_valid_count variants give raw counts instead of fractions. A return with all-NaN moments has fraction 0.0; a fully populated one has 1.0.

Visual walkthrough¶

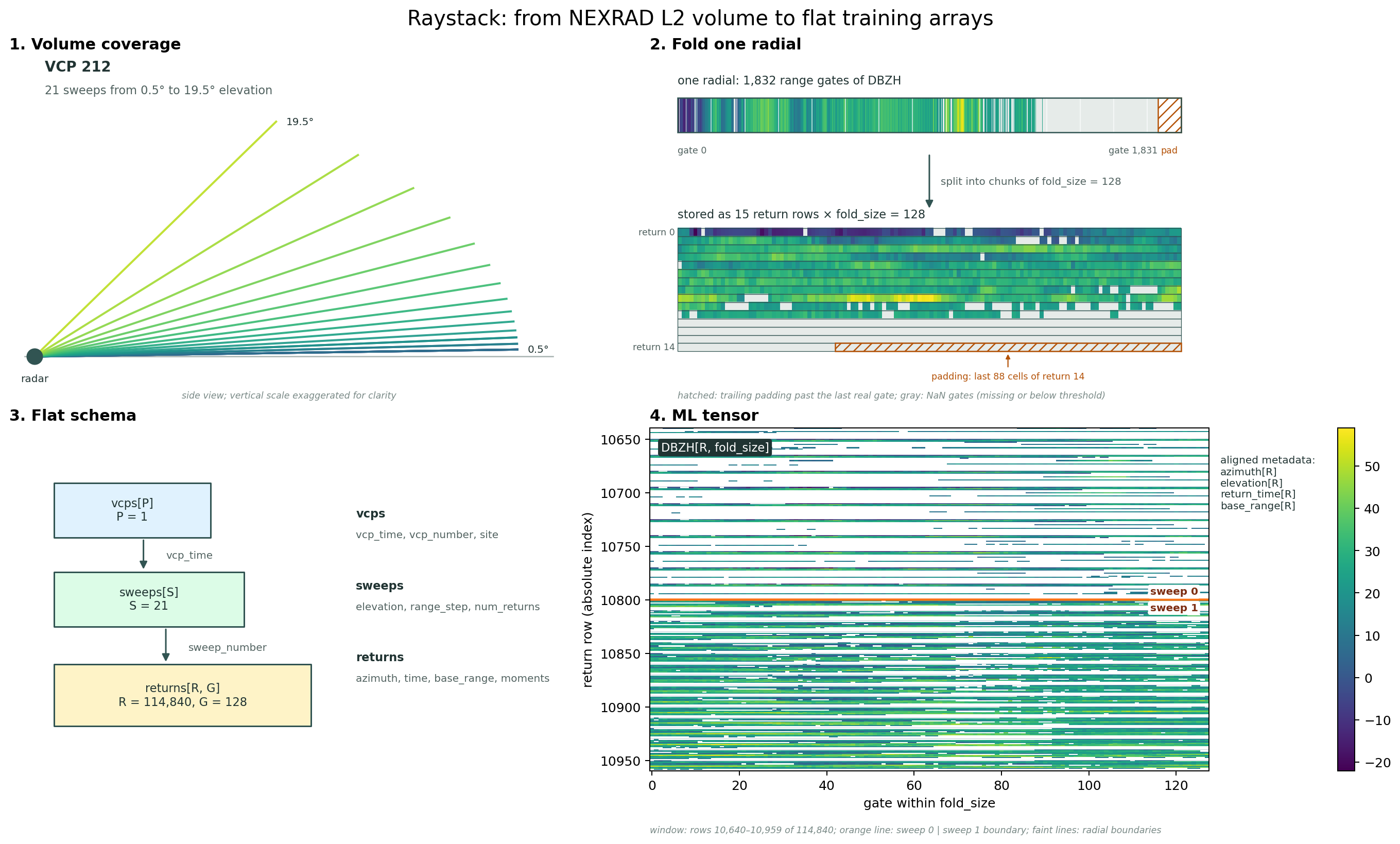

The panels below trace the same KABR volume from physical geometry to the final arrays.

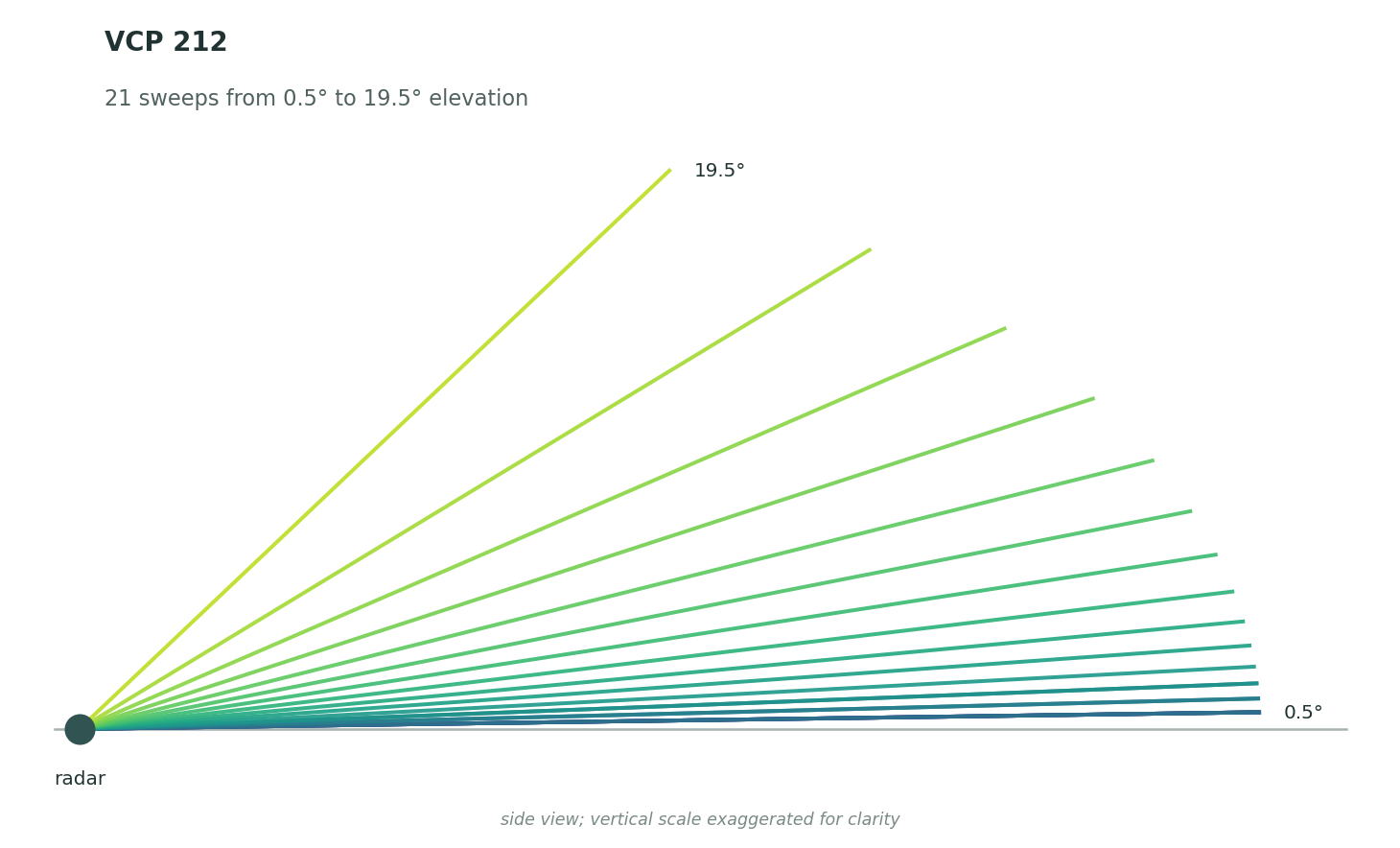

A NEXRAD volume. A volume is a VCP made of sweeps at different elevations; each sweep is a sequence of radials, and each radial carries moment values along its range gates.

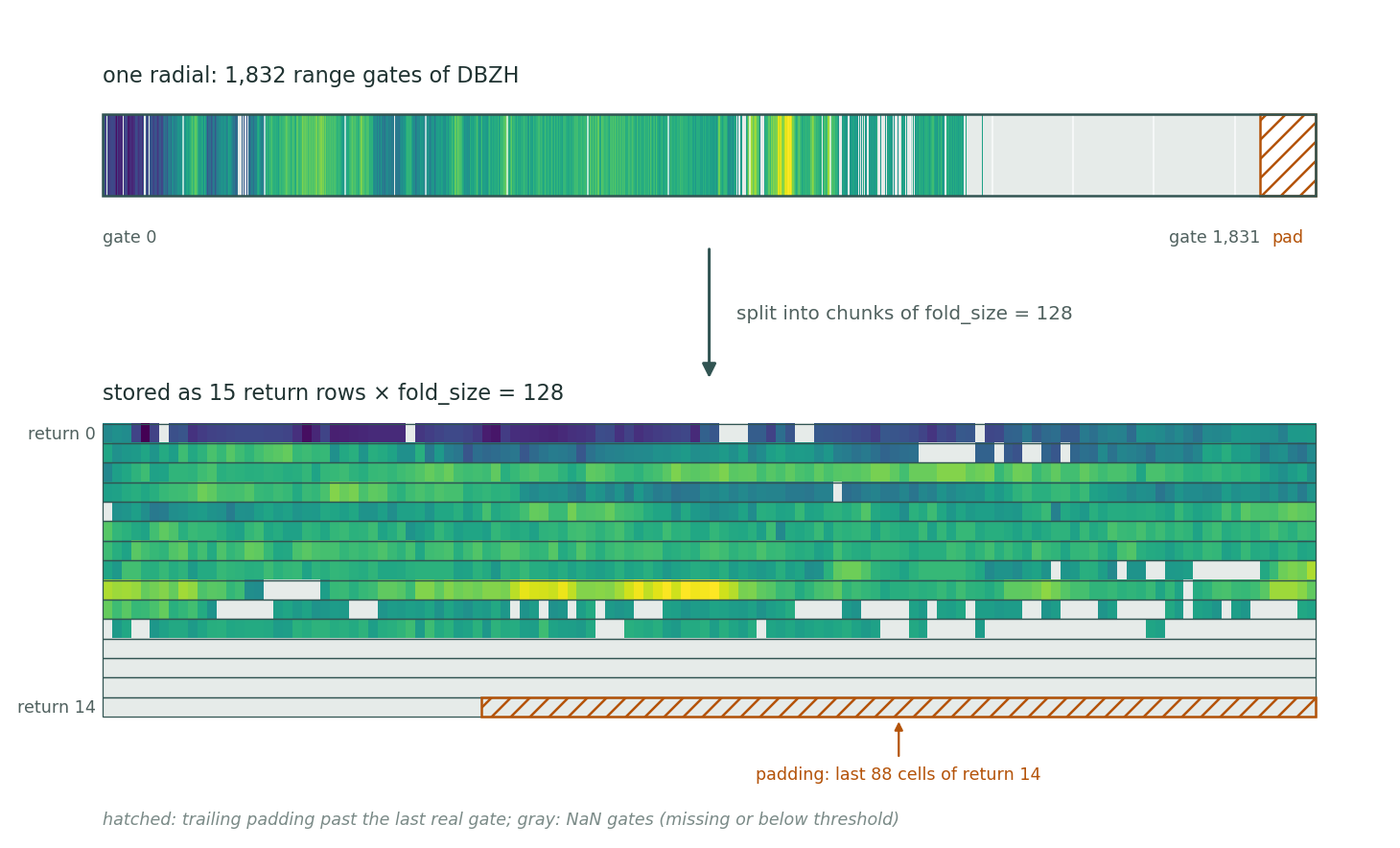

Folding a radial. Raystack splits each radial into fixed-width rows and keeps the metadata needed to place each row back in radar space. The 1,832 gates of this radial fill returns 0–13 completely and the first 40 gates of return 14; the hatched region is the trailing padding that fills return 14 out to fold_size. Padding is NaN, but so are gates that are missing or below the detection threshold — those are the gray cells scattered through the real part of the radial. Nothing in the moment array distinguishes the two, so use sweeps["max_gates"] when you need to know where the real gates end.

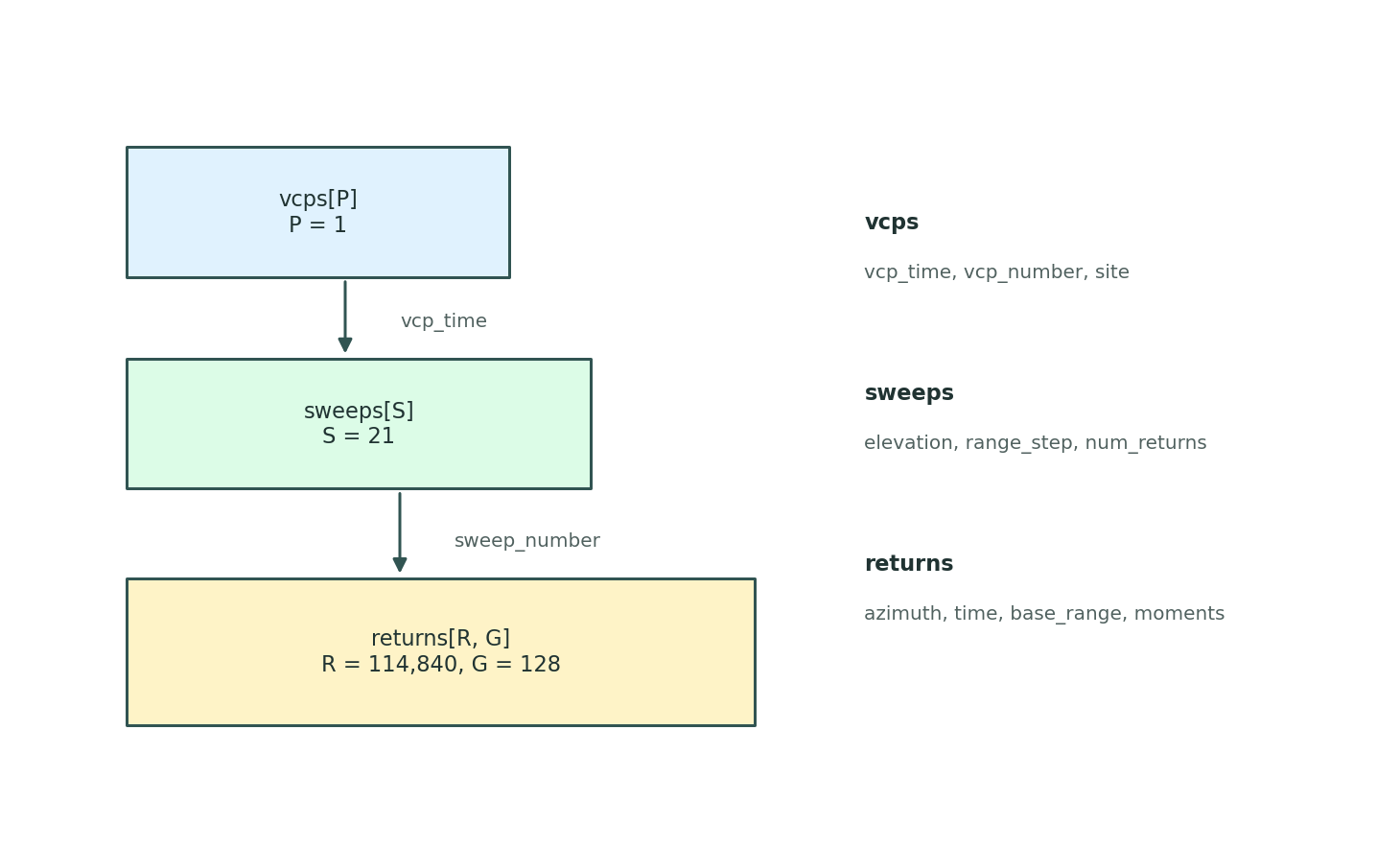

Flat schema. The hierarchy lives in three aligned tables — vcps, sweeps, returns — linked by sweeps["num_returns"].

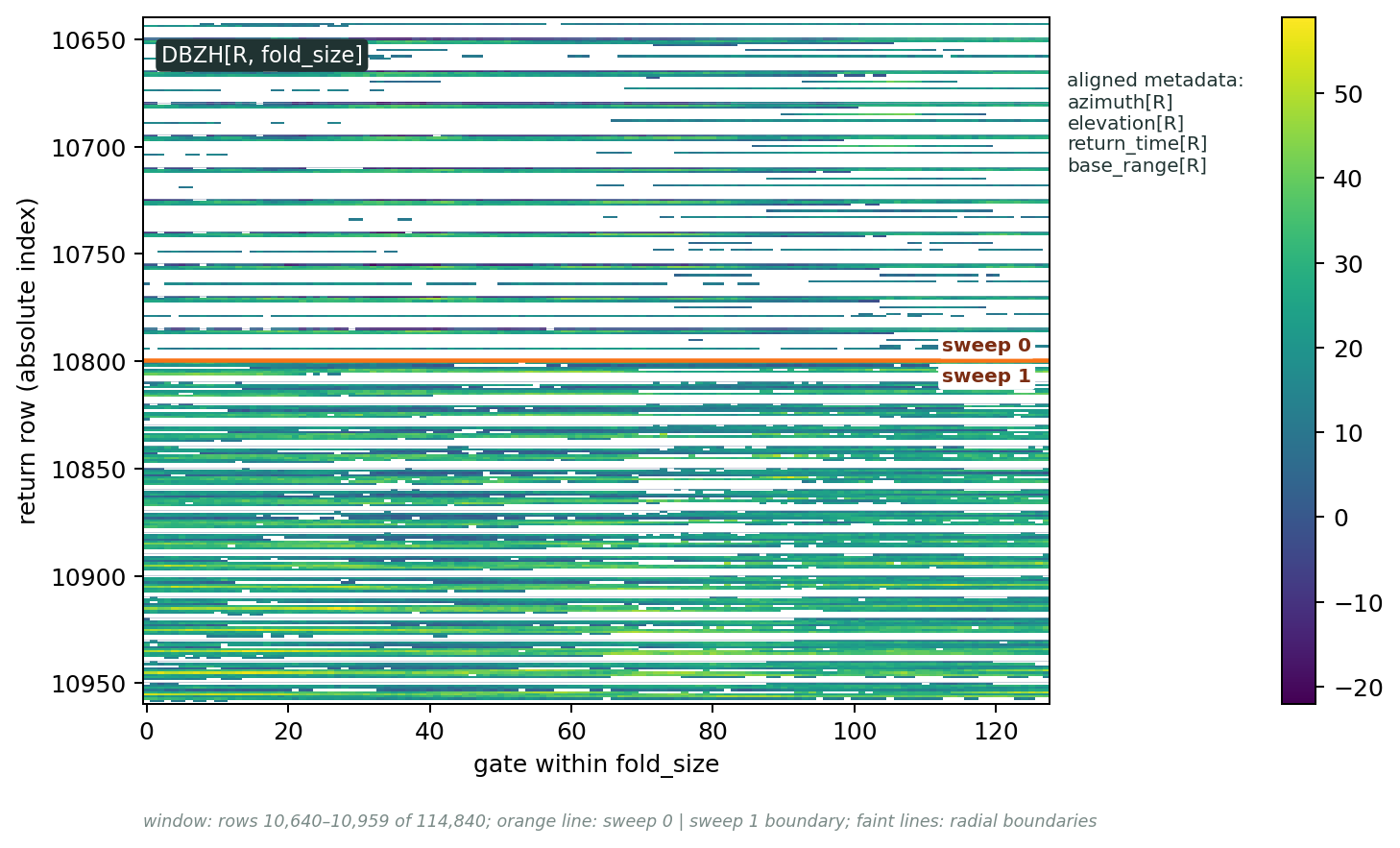

Tensor view. Each moment is a (n_returns, fold_size) matrix. The panel below shows a 320-row window of DBZH centred on the end of sweep 0 (row 10,800): the orange line is that sweep boundary, and the faint lines are radial boundaries — every 15 rows in sweep 0, every 10 in sweep 1, because the two sweeps have different max_gates. The 1-D metadata arrays line up row-for-row, so the same matrix is consumable as a tensor and interpretable as radar data.
